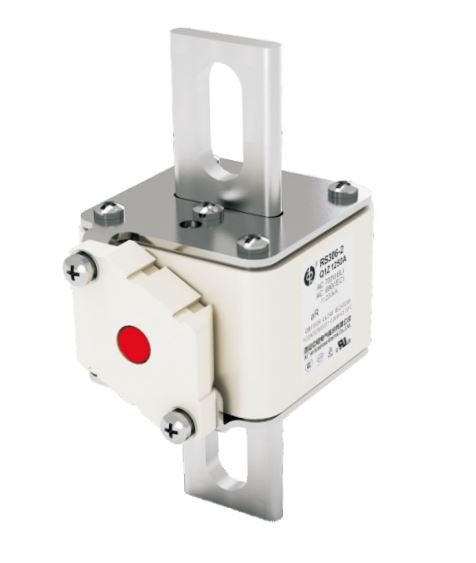

RS360-2-T1Z
690V AC high-speed fuse designed for protection of semiconductor devices in wind turbine converters and industrial power systems.
| Manufacturer | Sinofuse |
|---|---|
| Rated Voltage | AC 700V(UL); AC 690V(IEC) |
| Current Range | 400A – 1250A |
| Utilization Category | aR |
| Breaking Capacity | 200kA |
| Standards | IEC 60269-4; UL 248-13 |
Certificates
Key Features
- Fast-acting protection for semiconductor devices (aR), minimizing damage to IGBT modules
- High breaking capacity up to 200kA for reliable fault interruption
- Designed for AC 690V / 700V power conversion systems
- Optimized for protection of converter circuits and power modules
- Compliant with IEC 60269-4 and UL 248-13 standards

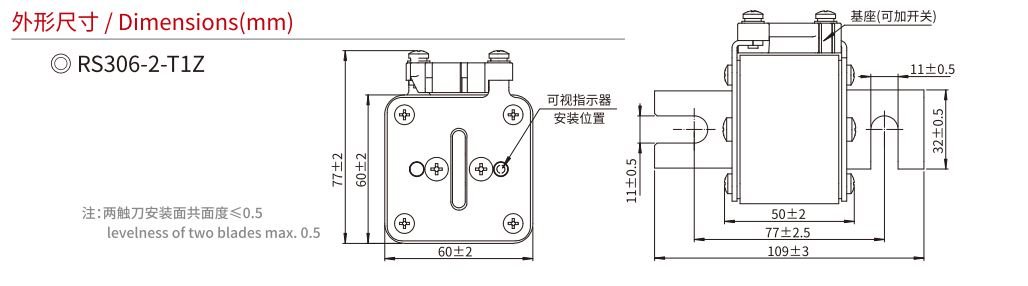

Product Dimensions (mm)

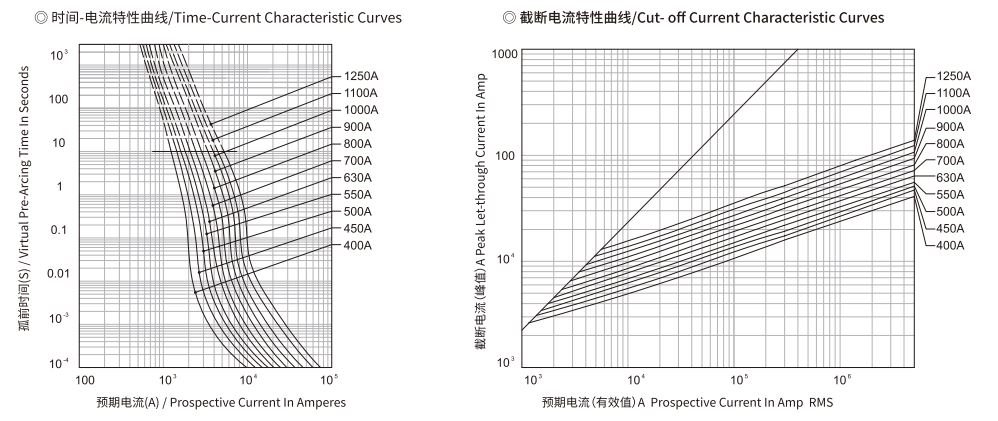

Typical Time–Current Characteristics
Where This Fuse Is Used
Used in wind turbine converter systems, this fuse ensures fast and reliable protection of semiconductor devices against short-circuit faults.
- Wind turbine converter module protection
- Generator-side and grid-side converter protection
- IGBT protection within power conversion systems
- AC circuit protection in turbine electrical systems
How to Select the Right Fuse
Follow these 4 steps to ensure proper fuse selection for your energy storage system.
1
Identify Installation Point
Determine where the fuse will be installed within the system.
2
Define System Parameters
Confirm system voltage and determine the continuous operating current.
3
Check Fault Conditions
Ensure the fuse breaking capacity exceeds the prospective fault current.
4
Select Fuse Type
Choose the appropriate fuse type based on application and protection requirements.
