HC14XLgPV
1500V DC photovoltaic fuse designed for protection of PV strings and combiner boxes in solar power systems.
| Manufacturer | Holly |
|---|---|
| Rated Voltage | DC 1500V |
| Current Range | 10A – 30A |
| Utilization Category | gPV |
| Breaking Capacity | 30kA |
| Standards | IEC 60269-6 |
Certificates
Key Features
- Designed for photovoltaic (PV) string protection
- Compliant with IEC 60269-6 standard
- High breaking capacity under DC fault conditions
- Suitable for 1500V DC solar applications

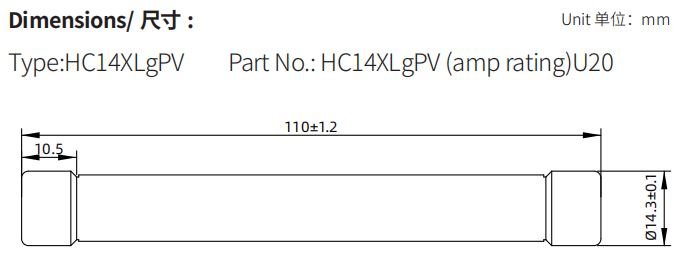

Product Dimensions (mm)
Where This Fuse Is Used
Installed in photovoltaic systems, this fuse provides protection for PV strings and combiner box circuits under overcurrent and reverse current conditions.
- PV string protection
- Combiner box protection
- Solar DC circuit protection
How to Select the Right Fuse
Follow these 4 steps to ensure proper fuse selection for your energy storage system.
1
Identify Installation Point
Determine where the fuse will be installed within the system.
2
Define System Parameters
Confirm system voltage and determine the continuous operating current.
3
Check Fault Conditions
Ensure the fuse breaking capacity exceeds the prospective fault current.
4
Select Fuse Type
Choose the appropriate fuse type based on application and protection requirements.
