NH3LaBat
1500V DC fuse designed for protection of battery systems and high-current DC circuits between battery and PCS in energy storage applications.
| Manufacturer | Holly |
|---|---|
| Rated Voltage | DC 1500V |
| Current Range | 250A – 1400A |
| Utilization Category | aBat |
| Breaking Capacity | 250kA |
| Standards | IEC 60269-7; UL 248-13 |
Certificates
Key Features
- Designed for high-energy battery circuits in energy storage systems
- Reliable interruption under high fault current conditions
- High breaking capacity for 1500V DC applications
- Suitable for high-current battery racks and DC circuits

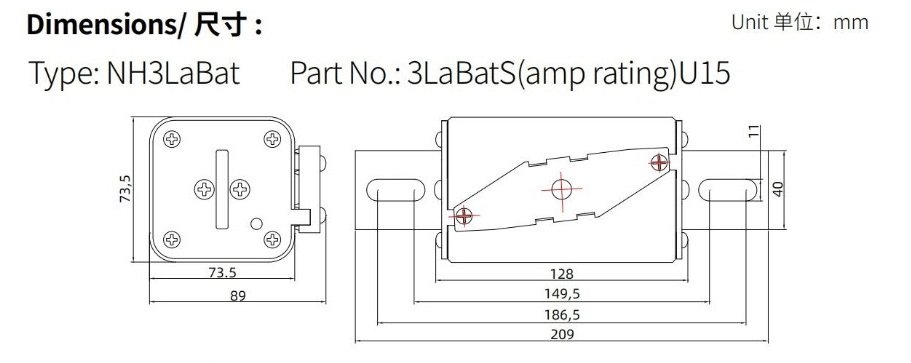

Product Dimensions (mm)

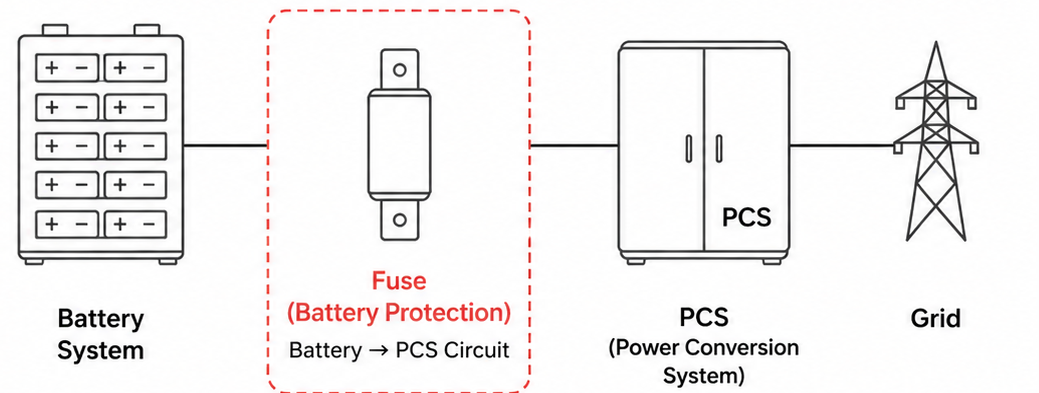

Where This Fuse Is Used
Installed on the battery side of energy storage systems, this fuse provides reliable protection for high-current DC circuits between battery systems and PCS under fault conditions.
- Battery rack protection
- Battery cluster protection
- DC circuits between battery and PCS
How to Select the Right Fuse
Follow these 4 steps to ensure proper fuse selection for your energy storage system.
1
Identify Installation Point
Determine where the fuse will be installed within the system.
2
Define System Parameters
Confirm system voltage and determine the continuous operating current.
3
Check Fault Conditions
Ensure the fuse breaking capacity exceeds the prospective fault current.
4
Select Fuse Type
Choose the appropriate fuse type based on application and protection requirements.
