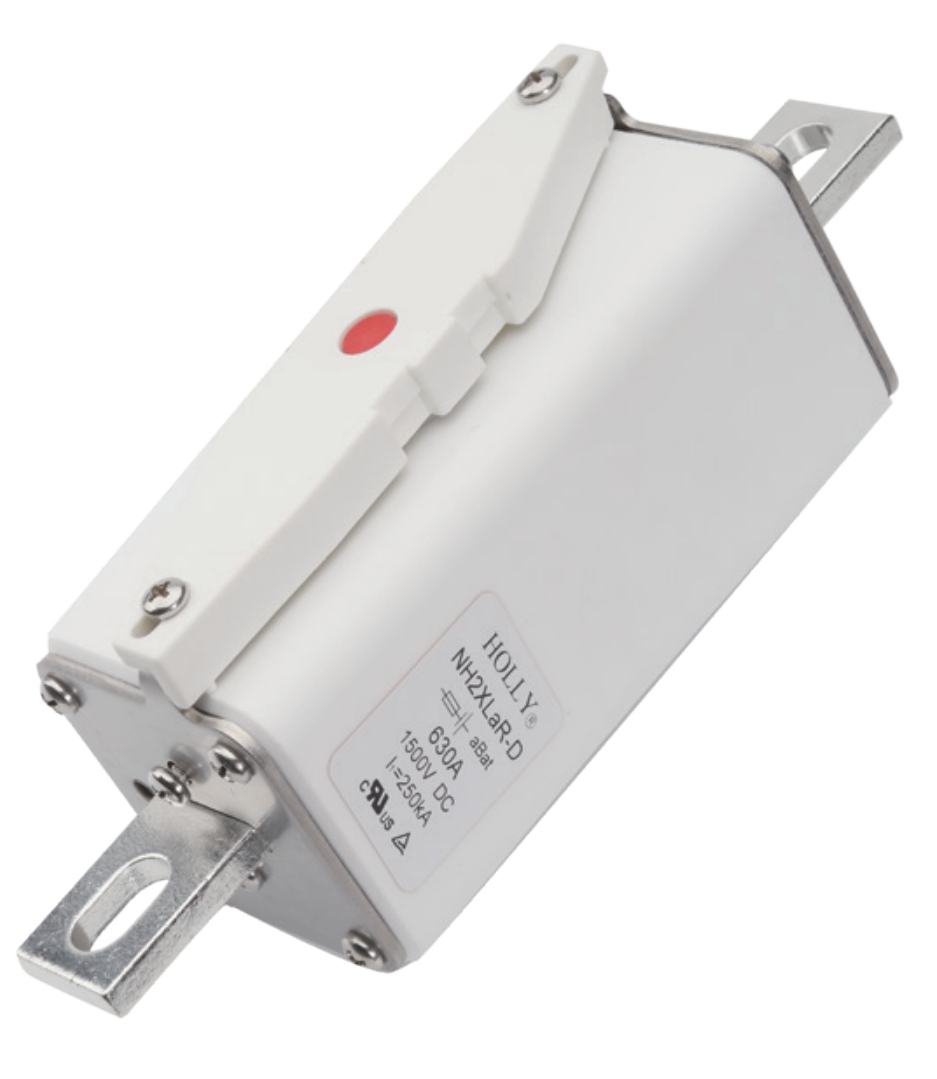

NH2XLaR-D
1500V DC high-speed fuse for protection of energy storage high voltage boxes, DC circuits, and power distribution systems in ESS applications.
| Manufacturer | Holly |
|---|---|
| Rated Voltage | DC 1500V |
| Current Range | 50A – 630A |
| Utilization Category | aR |
| Breaking Capacity | 250kA |
| Standards | IEC 60269-4; UL 248-13 |
Certificates
Key Features
- Fast-acting protection for semiconductor circuits
- High breaking capacity under 1500V DC fault conditions
- Designed for DC circuits in energy storage high voltage boxes
- Reliable performance in energy storage systems

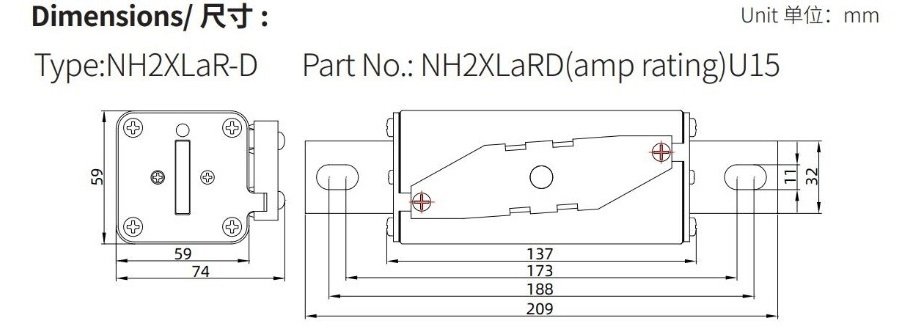

Product Dimensions (mm)
Where This Fuse Is Used
Designed for installation in energy storage high voltage boxes, this fuse provides fast and reliable protection for DC circuits and power distribution systems under fault conditions.
- Energy storage high voltage box protection
- DC circuit protection in ESS systems
- Power distribution protection between battery and PCS
How to Select the Right Fuse
Follow these 4 steps to ensure proper fuse selection for your energy storage system.
1
Identify Installation Point
Determine where the fuse will be installed within the system.
2
Define System Parameters
Confirm system voltage and determine the continuous operating current.
3
Check Fault Conditions
Ensure the fuse breaking capacity exceeds the prospective fault current.
4
Select Fuse Type
Choose the appropriate fuse type based on application and protection requirements.
