IEC 60269-6 / UL 248-19 Certified Models Available
PV String & Combiner Box Fuse Solutions
FuseSure helps engineers compare suitable gPV fuse links for 1000V / 1500V DC PV systems by string current, fuse size, certification, mounting style, and installation position.
Solar Fuse Selection
Certified Models
Multi-Brand Supply
Technical Assessment
Certified PV Fuse Series
FuseSure helps you compare PV fuse options by voltage, current rating, fuse size, certification, mounting style, and application location. Matching fuse holders and bases are also available for selected models.
gPV Cylindrical Fuse Links
HC10gPV
gPV
Size: 10×38mm
1000V DC | 1A–30A
Breaking Capacity: 30kA
UL / TÜV Certified
Holder Option: HC101D
HC10LPV
gPV
Size: 10x85mm
1500V DC | 1A–35A
Breaking Capacity: 30kA
UL / TÜV Certified
Holder Option: HC10LD-E
HC10LgPV-B
gPV
Size: 10x85mm
1500V DC | 30A–50A
Breaking Capacity: 50kA
TÜV Certified
Holder Option: HC10LD-F
HC14gPV
gPV
Size: 14×51mm
1500V DC | 1A–15A
Breaking Capacity: 30kA
UL / TÜV Certified
Holder Option: HC141B
HC14LgPV
gPV
Size: 14x65mm
1500V DC | 1A–20A
Breaking Capacity: 30kA
UL Certified
Holder Option: HF-141A
HC14XLgPV
gPV
Size: 14x110mm
2000V DC | 10A–30A
Breaking Capacity: 50kA
TÜV Certified
Holder Option: HC14XLD
gPV NH fuse links
NH1XLgPV
gPV
1500V DC | 63A–200A
Breaking Capacity: 30kA
TÜV Certified
Mounting: Blade / Bolted
Fuse Size: NH1XL
NH2XLPV-C(D)
gPV
1500V DC | 63A–400A
Breaking Capacity: 50kA
UL / TÜV Certified
Mounting: Blade / Bolted
Fuse Size: NH2XL
NH2XLPV-F
gPV
1500V DC | 160A–350A
Breaking Capacity: 50kA
UL / TÜV Certified
Mounting: Blade / Bolted
Fuse Size: NH2XL
PV312-2XL-T
gPV
1500V DC | 160A–450A
Breaking Capacity: 50kA
UL / TÜV Certified
Mounting: Bolted
Fuse Size: NH2XL

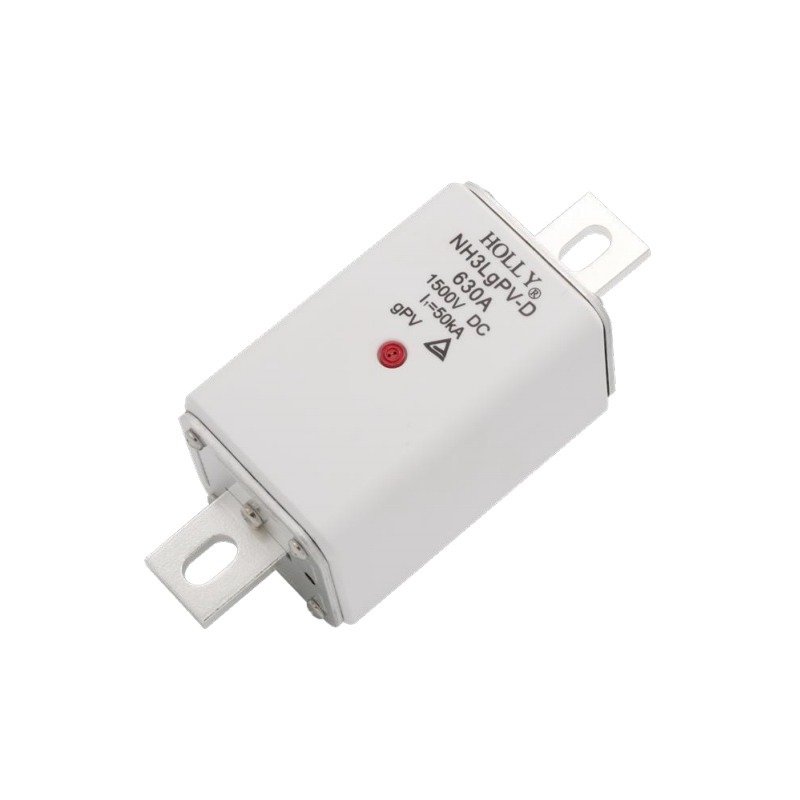

NH3LgPV-C(D)
gPV
1500V DC | 400A–630A
Breaking Capacity: 50kA
UL / TÜV Certified
Mounting: Blade / Bolted
Fuse Size: NH3L
H3BHG
gPV
2000V DC | 125A–450A
Breaking Capacity: 50kA
TÜV Certified
Mounting: Bolted
Looking for a Specific PV Fuse Requirement?
Full Range of Fuse Classes & Mounting Styles Available. Let Our Technical Team Find the Perfect Match for Your Systems.
Beyond Supply
Stop searching through endless catalogs. You get direct, expert selection support based on a deep study of your specific operating conditions, ensuring the perfect fuse for your environment. With professional guidance and a global network at your fingertips, you gain faster delivery and a stable supply chain that keeps your Solar systems running smoothly.
Authorized Resource Integration
Benchmarking top-tier manufacturers for your optimal system fit.
Supply Continuity Security
Beyond single-brand limits, beyond supply risks.
Matching Accessories Support
Matching holders and accessories available for selected PV fuses.
Key Partnership Highlights
Top-tier authorized manufacturers selected for your system.
public-listed manufacturer
public-listed manufacturer
proven expertise manufacturer
How FuseSure Reviews Supplier Options
FuseSure works with 12 qualified suppliers and reviews options based on product coverage, certification status, availability, and application fit.
Product Coverage
Required fuse classes, current ranges, and 1500V DC applications.
Certification Status
Certification availability by model, rating, and supporting documents.
Technical Compatibility
Mounting style, dimensions, and application fit.
Supply Support
Availability, lead time, and document response.
Accelerate Your Evaluation
We provide full technical documentation to streamline your engineering approval process.
Datasheets
Electrical ratings, dimensions, curves, I²t data, and mounting information for selected models.
3D Model Files
STEP files or 3D product models can be provided when available for mechanical and installation review.
Certification
IEC 60269-6, UL 248-19, and related certification information can be shared when available for selected models.
Test Reports
In-depth performance data including temperature rise, breaking capacity, and endurance testing.
Get Your Right Fuses in 4 Simple Steps
Send your PV system details, existing fuse model, or target specification. We review your voltage, current, installation point, certification needs, and reply with suitable PV fuse options.
1
Share Your Requirement
Send us your system inputs (Voltage, Current, Application, etc.)
2
Expert Engineering Review
Our engineering team analyze your data to select the most reliable fuse models
3
Full Tech-Pack Delivery
We provide datasheets, 3D models, and drawings for your final approval.
4
Finalize & Quote
Confirm quantities, SOP timelines, and get your competitive quote.
— PV Fuse Engineering Support —
Get the Right PV Fuse Option in Hours, Not Days.
Tell us your PV application, fuse size, installation point, existing model, certification requirement, or whether matching fuse holders or bases are needed.
